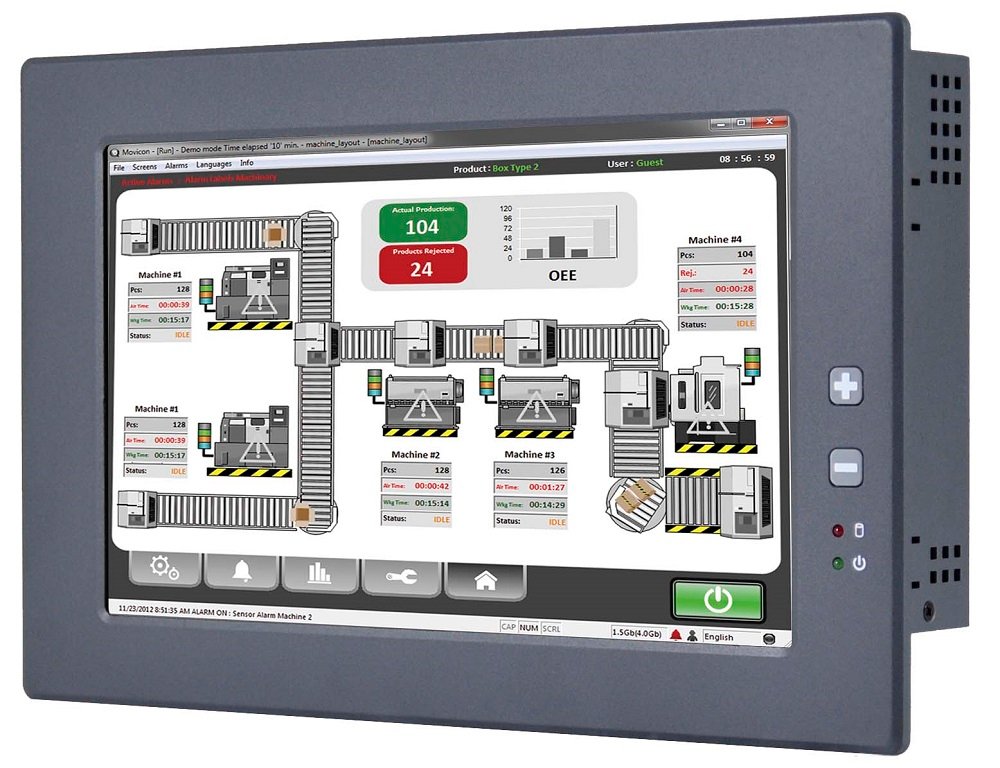

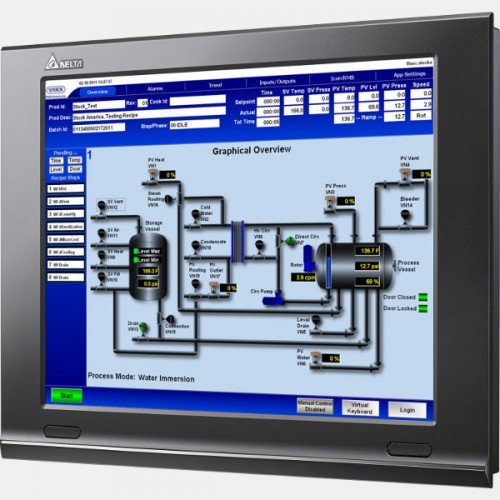

Industrial Panel PC

Pioneers in the industry, we offer Commercial Computer such as Panel PC, LCD Display, Marine Grade PC, Defense Grade PC, Aviation Grade PC, Medical Grade PC and many more items from India.

Industrial Panel PC

Industrial Panel PC

Focused on technological up-gradation, dynamism and innovation, we are moving ahead by maintaining timeliness in delivering a wide gamut of Panel PC. The offered panel PC is designed and developed at our vendors' end using advanced technology and quality tested components in compliance with set industry norms. Our offered panel PC is widely used for person as well and office work. Further, this is highly appreciated by our clients for its fast programming and user-friendly interface.

Other Details:

Keywords:

1) Industrial pc In bangalore
2) Industrial pc In chennai
3) Industrial Pc In India
4) Low Cost Panel Pc
5) Low Cost Touch Screen
6) Industrial Laptop
7) 6*RS232 Port Pc

Features:

1) Feather touch
2) Hassle free performance
3) Durability

Specifications:


Main boardSpace for standard Micro-ATX and Mini-ITX main board
ProcessorsIntel / AMD / VIA
MemoryUpgradable standard SDRAM / DDR /DDR2 memory
HDDSpace for 2.5" x 1
Optical DeviceSpace for Slim CDROM/DVDROM/Combo(DVD+CDRW)DVD±RW
DisplayDisplay Type: 17" SXGA TFT LCD
Resolution: 1280 x 1024
Max.color: 16.7M
Luminance: 300 cd/m2
View Angel: 178°(H) , 178°(V)
Pixel Pitch: 0.264 x 0.264 mm
Contrast Ratio: 1000 : 1
Response Time: 5 ms
Power Consumption: 21.9 W
LCD MTBF: 50,000hrs
Expansion Slots2 x PCI slot
System Fan2 x ( 60x60x10mm ) cooling fan
SpeakerBuilt-in 2x stereo speakers(2w)
OSDBrightness, Contrast, H/V Position, Color, Phase, Clock, Management
Wireless LAN ( optional )usb Interface,Support 64 and 128 bit WEP Encryption
802.11b:11Mbps Up to 180m(Outdoor), 35- 60 m(Indoor)
802.11g:54Mbps up to 50m(Outdoor),20m(Indoor)
Touch Screen ( optional )Internal USB or RS-232 interface controller
Type: Analog resistive type : 25VDC ≥ 20MΩ
Resolution: continuous
Light transmission: 80% or more
Power consumption:<5V @1mA
Surface hardness: 3H
Operating force: ≤100g
Life expectancy: 1 Million
Operation system: Window 98 / 2000 / ME / XP / NT / CE, DOS , Linux
Power SupplyInput: 115~240VAC,50/60Hz
Output: ATX 350W with active PFC +5V@ 20 A , +12V@ 16A
ConstructionHeavy duty steel and aluminum front panel

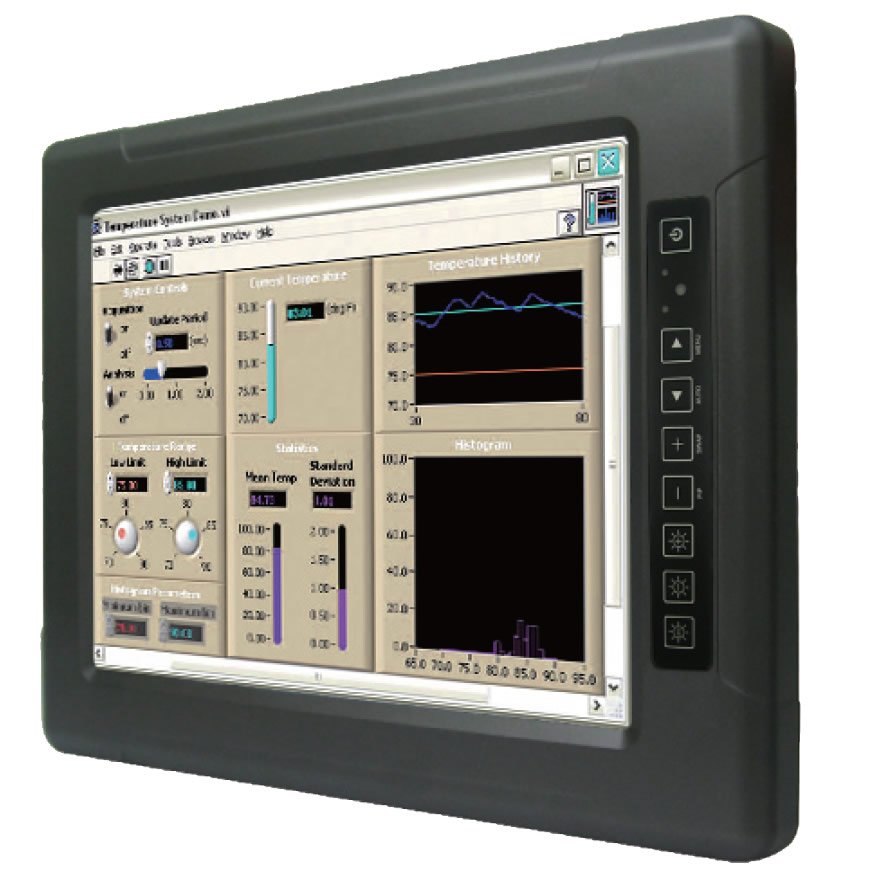

Industrial LCD Display

Industrial LCD Display

Retaining our goodwill in the industry for years, we offer a wide variety of LCD Display. Our provided product is designed & developed by our experienced professionals utilizing the best grade electrical components & modernized technology as per the international standards. Offered product is highly appreciated by our clients for its rugged construction and modularized design. Our customers can avail this product from us at nominal rates. Industrial PC manufacturer, Fanless Computer, Single Board Computer, Touch Screen, Industrial Computer Peripherals manufacturer and Suppliers Chennai, Bangalore, Hyderabad, Cochin, India

Features:

1) Reliable performance
2) Rugged construction and modularized design
3) OSD control keys to optimize the display

Specifications:

1) Compact 19” rack mount display monitor with 8.5 U height
2) 19” SXGA TFT LCD Panel support 1280 × 1024 pixels
3) 6 mm Aluminum front bezel with Hardness Glass protect screen (Touch option)
4) Rugged construction and modularized design
5) Input signal : VGA + DVI + AUDIO
6) 300 cd / m 2 brightness
7) OSD control keys to optimize the display
8) AC 100-240 V wide range external ac adapter


Additional Information:

Minimum Order Quantity:
1 Piece

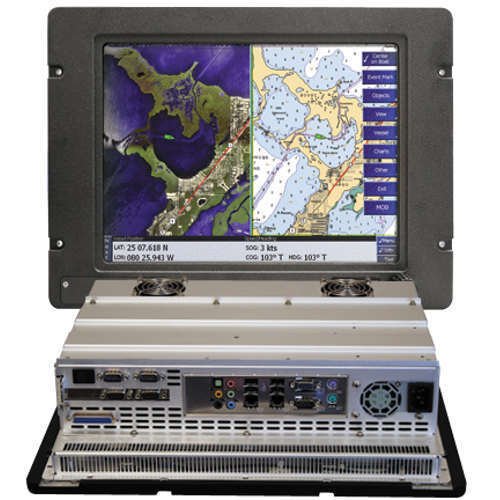

Marine Grade PC

Marine Grade PC

We are the world widely known for offering a variegated range of Marine Grade PC. Offered product is well tested from our side on numerous parameters so as to deliver a defect free range to customers. This product is developed by our highly experienced professionals using latest technology & top quality of electrical components. As well, our product is comes in numerous customized options in accordance with the customer’s choice.

Features:

1) Ease of installation
2) Optimum quality
3) Long service life

Specifications:

LCD:

Resolution: 800 x 600 or 1024 x 768
Contrast Ratio: 500:1

Processor:

Celeron M 2.13GHz, Core 2 Duo 2.2GHz or Core i5 2.4GHz

Electrical:

Voltage, standard: 115/230V
Auto Switching or 9-36 VDC

Physical:

Dimensions: 13.4 W x 10.1 H x 3.6 D
Weight: 11.5 lbs (5.0 kg)

Qualifications:

Tested to meet MIL 901D,
MIL 167-1- 60945, IEC 60945, MIL 461F

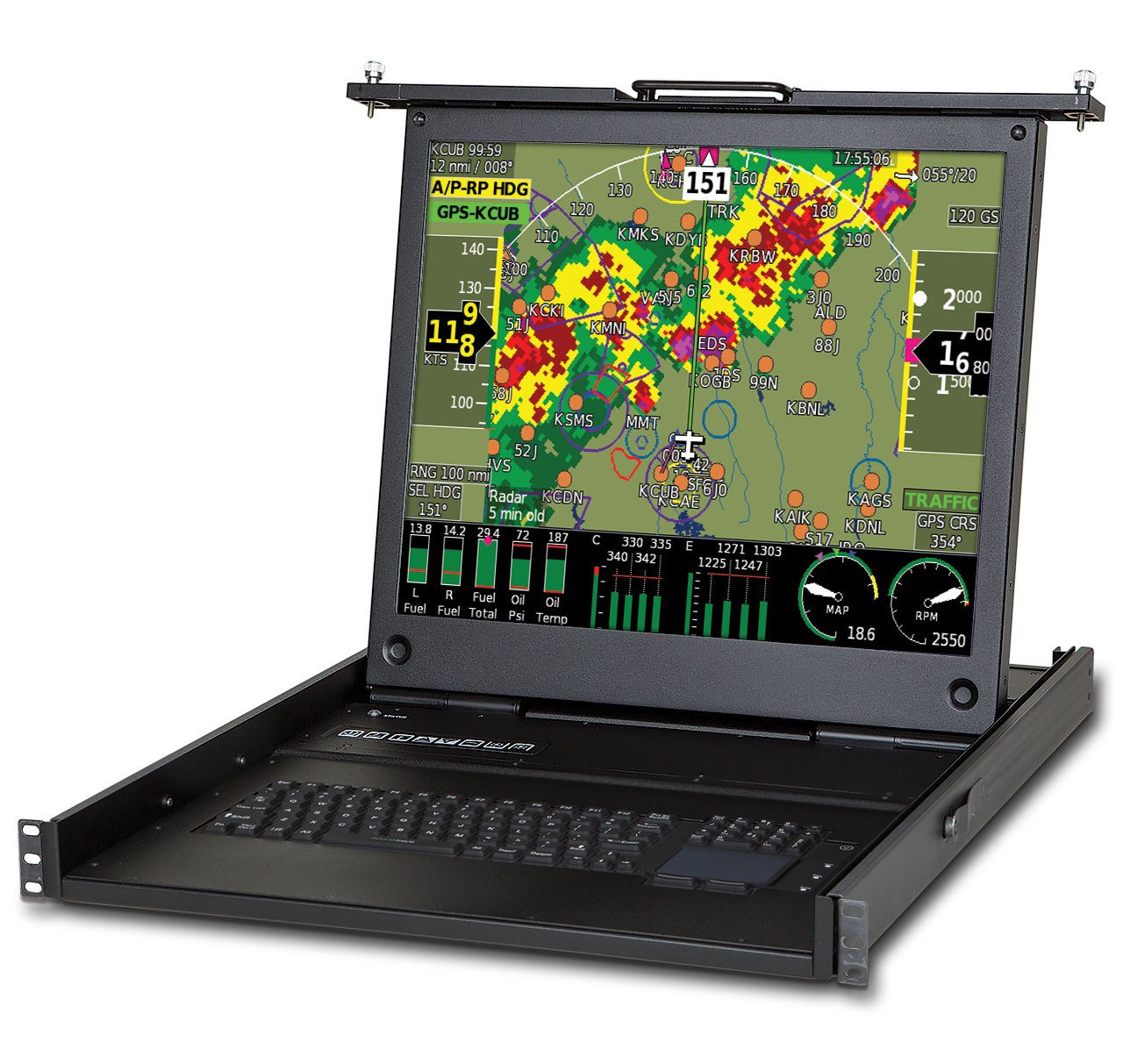

Defense Grade PC

Defense Grade PC

With enriched experience and extensive market knowledge, we have been accredited as the top notch brand of Defense Grade PC. The product offered by us is made available by us in varied specifications & customized options to choose from. Our experts assemble this product as per the defined industry standards by contemporary technology. This product is applauded by our customers for its long lasting functionality. Industrial PC manufacturer, Fanless Computer, Single Board Computer, Touch Screen, Industrial Computer Peripherals manufacturer and Suppliers Chennai, Bangalore, Hyderabad, Cochin, India

Features:

1) Robust construction
2) Easy to install
3) Impeccable design

Specifications:

1) RAM: up to 8 GB DDR 3 1333 MHz
2) Graphics: Intel Gen7 D x 11, Open GL 3.2, graphics engine
3) Video: 1 x VGA, 1 x HDMI
4) USB: 6 x USB (2 x USB3.0, 4x USB 2.0) Option: 4 x USB 3.0, 6 x USB 2.0
5) COM: 3 x RS 232 / 422 / 485 (Option: up to 5x COM)
6) LAN: 2 x Gb LAN
7) SATA: 2 x SATA-II
8) DIO: 8 x DIO
9) Expansion Slot: 2x mini PCI-e (support 1 x m SATA)
10) DC Power: DC9~19V standard, Option : DC 9~32 V military grade
11) AC Power: AC90~264V
12) Panel PC: 8.4, 10.4, 12, 15, 17, 19, 20, 21.5, 23.6, up to 65"
13) I/O Port: Military grade IP-67 or standard I/O ports at your request

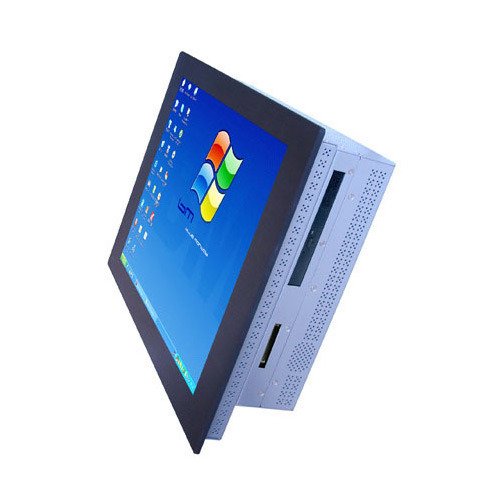

Industrial Panel PC

Industrial Panel PC

With enriched experience in the industry, we are engaged in offering high grade Panel PC. The offered panel PC is precisely designed under the direction of our professionals using advance technology keeping in mind the all standards of industry. This panel PC is tested on set various parameters to eradicate all fault in it. Our panel PC is available in varied customized options in order to meet the specific demand of customers.

Features:

1) 10.4 LED panel support 800 x 600 pixels
2) Front 6mm aluminum bazel with IP65 compliant
3) Easy installation

Specifications:

1) 19" LED Panel,1280 × 1024
2) Intel Core i7 / i5 / i3 Sandy bridge Processor
3) DC8-30V, Wifi option
4) Up to 8G RAM
5) IP65 front
6) 4COM (1 x RS485), 1 x DVI, 1 x PS/2, 1 x VGA, 6 x USB, 2 x LAN, 1 x Audio,1 x MIC,1 x PCIE-16X, 1 x Mini PC

Additional Information:
Minimum Order Quantity: 1 Piece(s)

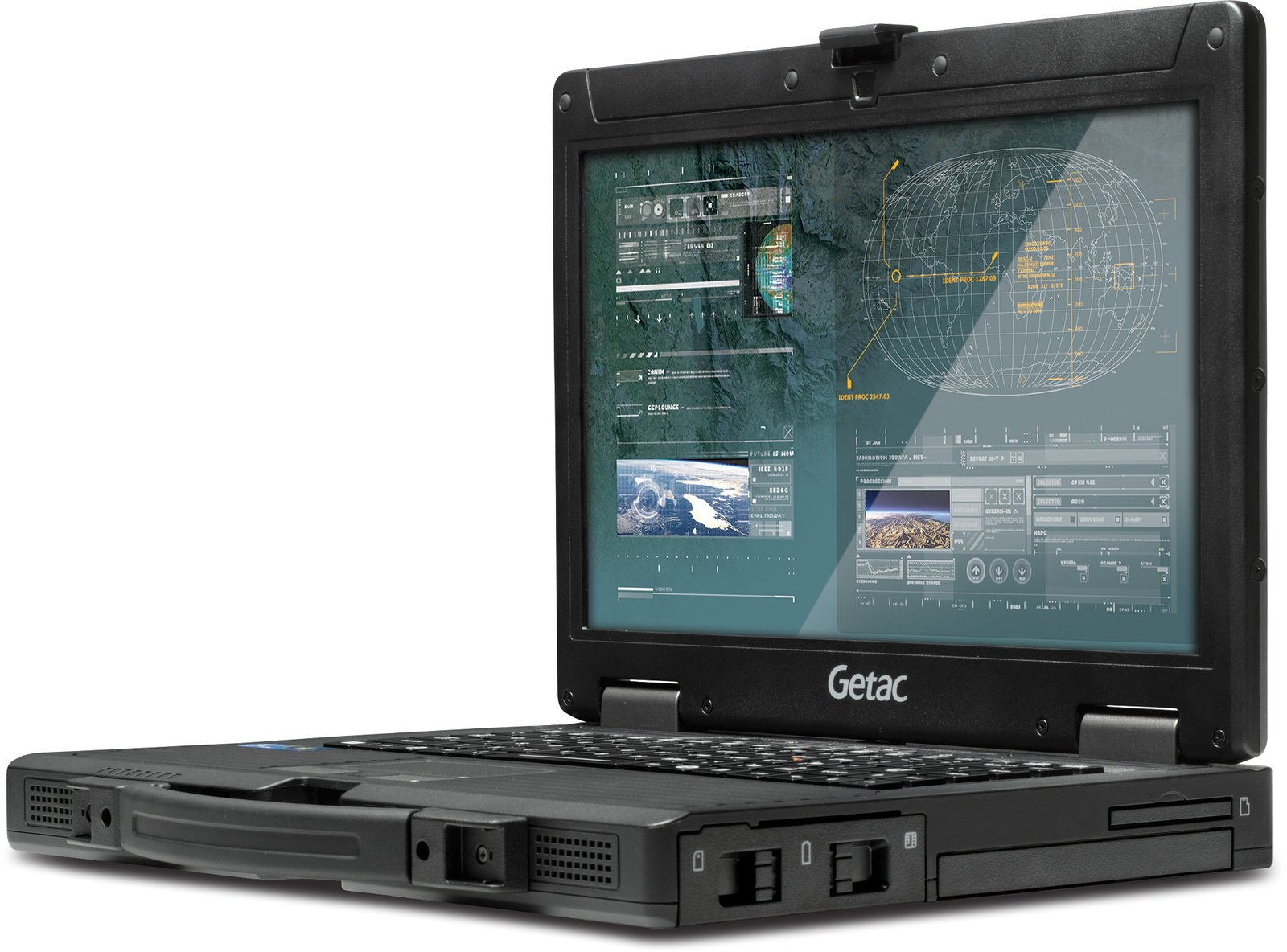

Aviation Grade PC

Aviation Grade PC

Other Details:

1) Attitude / Artificial Horizon Display
2) Directional Gyro Display
3) Turn Coordinator with slip / skid ball
4) Altitude, Airspeed, Rate of Climb
5) Flight Director (Autopilot interfaces are available as an option)
6) "Highway in the Sky" Navigation Display
7) Moving Map Display (Weather depiction is available as an option)
8) All Engine Instruments

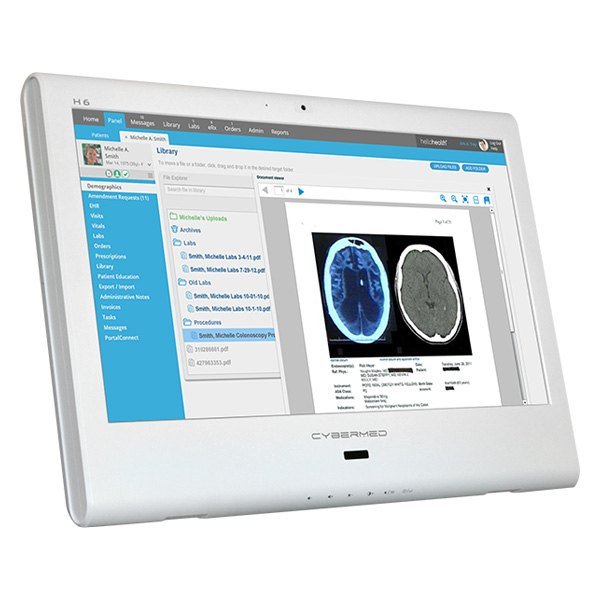

Medical Grade PC

Medical Grade PC

22" TFT Fanless Super Slim Medical Grade PC Panel Computer with Intel® Core™2 Duo to i7 Processor available

Introduction:

It well-suited for applications like medical image processing and medical measuring instrument
Especially designed for the medical environment, it adopts IPX1 waterproof design which protects the entire system from outside liquid, preventing system from crashing. Powered by socket
P IntelCore 2 Duo processor and PCI expansion slot, the ETMPC225-851-FL is definitely the best choice for your medical panel computer. Industrial PC manufacturer, Fanless Computer, Single Board Computer, Touch Screen, Industrial Computer Peripherals manufacturer and Suppliers Chennai, Bangalore, Hyderabad, Cochin, India

Features:

1) 22" high brightness (300 nits) WSXGA TFT LCD
2) Fanless socket P Intel Core 2 Duo or Intel Celeron M processors
3) Intel GM45 + ICH9M chipset
4) UL60601 - 1 / EN60601 - 1, CE & FCC class B certified
5) Water / dust - proof design (front bezel: IP65, full enclosure: IP X 1)
6) Built - in Super Multi drive
7) 1 PCI or PCIe x 4 expansion slot (for ETMPC225 - 851 - FL - AC - PCI or ETMPC 225 - 851 - FL - AC - PCIe)
8) Optional Bluetooth / RFID reader / internal WiFi (802.11 b / g)
9) Built - in 1.3 mega pixels camera


Mil Grade PC

Mil Grade PC

Computer:

CPU: Intel Core™ i7
Memory: 4 GB
Mass Storage: Removable Solid State Drive

Electrical:

Input voltage: 28VDC per MIL-STD-1275B

Physical:

Dimensions: 12.1 W x 10.2 H x 3.1 D
Weight: 10 lbs

Tested to Meet:

1) Temp, Operating: -20°C to 65°C per MIL-STD-810G, Methods 501.5 & 502.5
2) Temp, Storage: -40°C to 85°C per MIL-STD-810G, Methods 501.5 & 502.5
3) Humidity: 95% per MIL-STD-810G Method 507.5
4) Salt Fog: MIL-STD-810G Method 509.5 Procedure I
5) Sand & Dust: MIL-STD-810G Method 510.5, Procedure I & II
6) Vibration: MIL-STD-810G Method 514.6, Tracked & Wheeled Vehicles
7) Shock: MIL-STD-810G Method 516.6, 40g 11ms half sine
8) Altitude: Operate=15,000 ft / Storage=40,000 ft

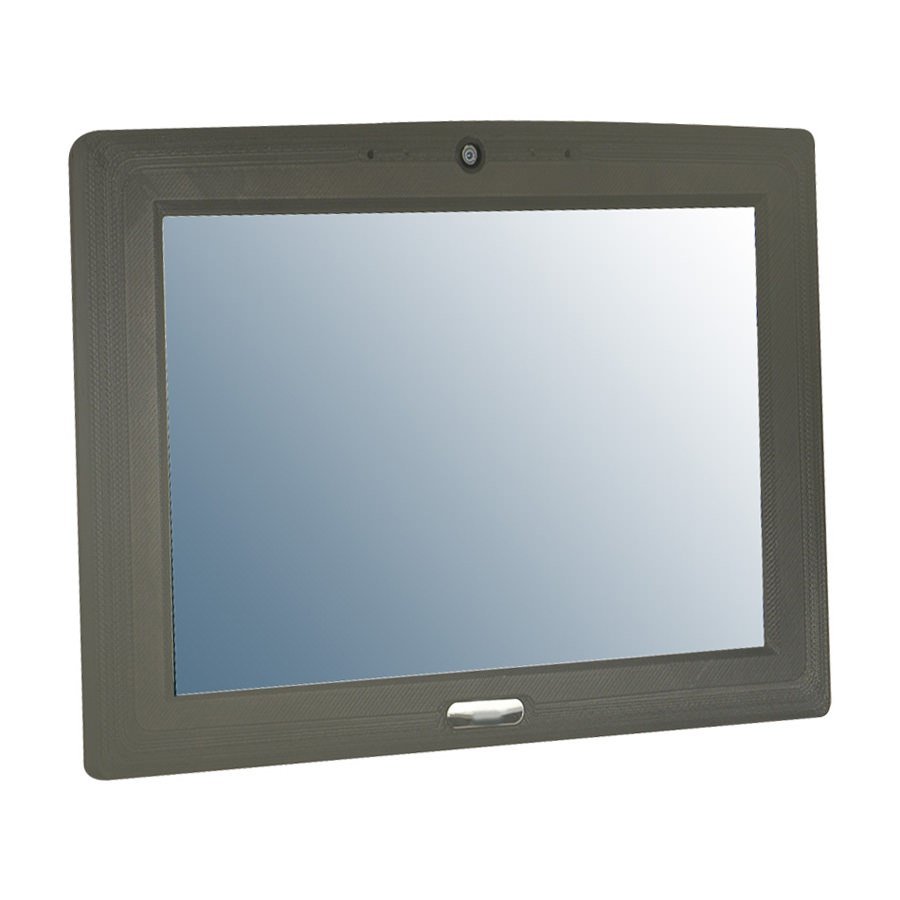

Fanless Panel PC

Fanless Panel PC

Dimension (mm)184.7W x 40H x 122.5D mm
Weight2 Kg
Hard driveN/A
LCD brandCPT
LCD size7 inch, 16:9
Max ResolutionWSVGA 1024 × 600
Luminance (cd/m2)375
Contrast Ratio400:1
Viewing Angle (H-V)140(H)-110(V)
BacklightLED
Touch ScreenResistive touch screen



Specifications Above :

Additional Information:
Minimum Order Quantity:
1 Piece(s)

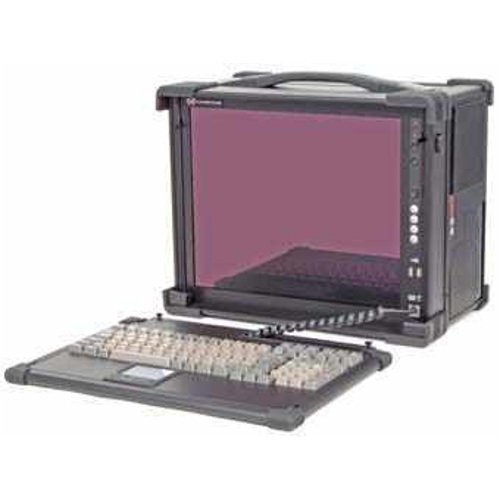

Industrial Workstation

Industrial Workstation

Specifications: Industrial PC manufacturer, Fanless Computer, Single Board Computer, Touch Screen, Industrial Computer Peripherals manufacturer and Suppliers Chennai, Bangalore, Hyderabad, Cochin, India

1) 17" SXGA 1280x1024 LCD
2) Anti-glare hard coat on display
3) Rugged aluminum alloy construction
4) Fits ATX motherboard
5) 7 Plug-in card slots
6) Two 5-1/4" and two 3-1/2" drive slots
7) Built-in speaker w/ amplifier
8) Two high flow cooling fans
9) Detachable 108-key keyboard w/ touch pad
10) Various power options
11) Custom logo available
12) Custom chassis modifications available

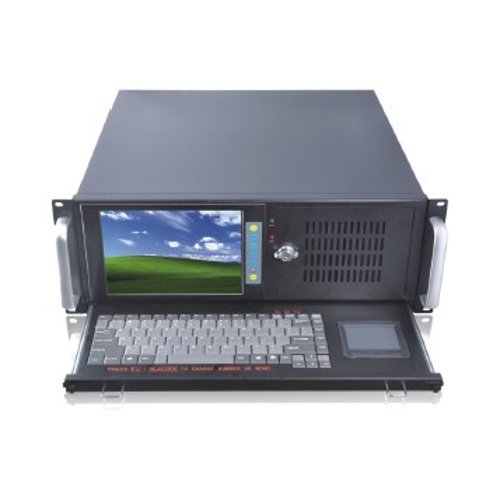

Rackmount PC

Rackmount PC

 Specifications :

Construction

Front Aluminum Bazel and steel enclosure
Disk Driver Bay2 x 3.5” HDD capacity
Cooling Fan2 x 8025 low-noisy swap cooling fan, with air filter and Moistureproof design
KeyboardBuilt-in 88-keys keyboard and touch pad.
OSDOSD function in front panel
I/O ConnectorFront panel: 2xUSB2.0Rear panel: 1xVGA, 2xPS/2(Optional)
LED indicators & SwitchPower LED indicator(Green), HDD LED indicator(Red), ATX Power Switch

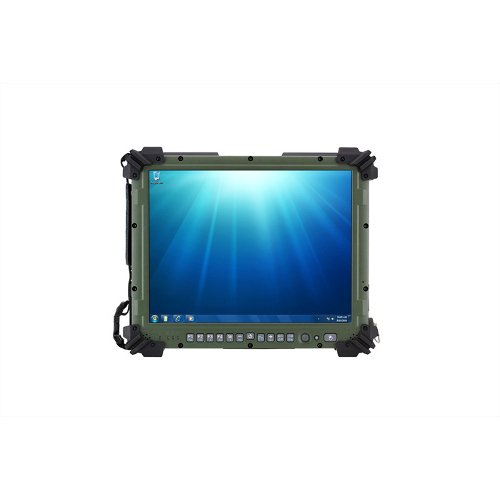

Rugged Tablet

Rugged Tablet

Specifications:

Color: Black or NATO Green (Military Package only)
Windows® 7 Professional / Windows 8
12.1” XGA (1024 x 768) with LED Backlit
Intel® Sandy Bridge i7-2610 UE Processor
4 GB DD R3 1333 MHz (Upgradeable to 8GB)
Intel HD Graphics 3000
Standard 500GB SATA HDD (Upgradeable)
Solid state hard drives (SSHD) available
Options: WiFi 802.11 a / b / g / n, Cellular (Gobi 3000), Bluetooth, GPS
MIL-STD 810G & IP-65 Certified


Industrial Tablet

Industrial Tablet

Specifications:


Display7” Multi-Touch Projected Capacitive, 1200 x 800, optional Sunlight Readable 600 nits
CPUTegra 2.1 Dual Core, 1.0 GHz
Memory1GB DDR2
Storage16GB eMMC Flash
ExpansionMicro SD Card
LANWiFi 802.11 b / g / n Bluetooth 2.1+EDR (Class 2) Optional 3G WWAN
I/O1 x Mini USB 2.0, 1 x Mini HDMI, SIM slot, Micro SD Card Slot, built in GPS, E-compass
CameraFront Facing 1.2 MP, Rear Facing 5.0 MP
Operating SystemAndroid 4.0
Battery27 Whr, 6 hrs Li-Polymer Battery
Dimensions / Weight136.6 mm W, 218 mm H, 21 mm D / 570 g
TemperatureOperating -20°C to 60°C, Storage -55°C to 75°C
Shock / Vibration / Ingress ProtectionMIL-STD-810G, 516.6, Procedure IV, 1.2 m, to plywood over concrete / MIL-STD-810G, Method 514.6, Procedure I, Cat 24 / IP65

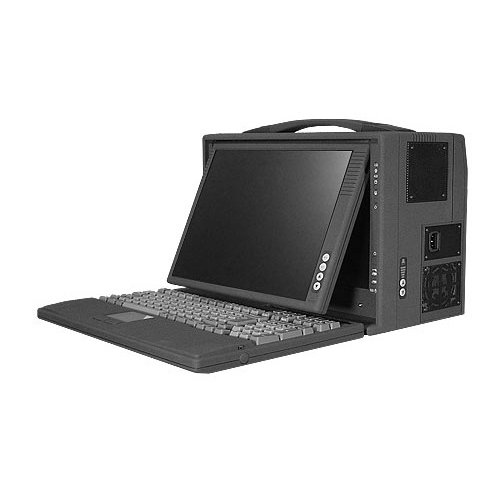

Multi Slot Portable Computer

Multi Slot Portable Computer

Specifications:


MotherboardSBC
Slot8
Drive Bay1 x 5.25" open
2 x 3.5" open
Power SupplyPS/2 400 Watt
ColorCharcoal/beige
LCD Size15.1" (Tiltable)
Resolution1024x768
VideoConversion Board: Analog-to-digital conversion board
ProcessorsLatest Intel Processors
Keyboard/Mouse108 keys, multi-languages/touchpad, RJ45 connector
3 Screen Portable Workstation

3 Screen Portable Workstation

Specifications: Industrial PC manufacturer, Fanless Computer, Single Board Computer, Touch Screen, Industrial Computer Peripherals manufacturer and Suppliers Chennai, Bangalore, Hyderabad, Cochin, India


ConstructionAluminum Construction with rubber corners
MotherboardSupport Micro ATX Motherboard
Display3x 17.3" LCD display, 1920x 1080 resolution, 262K colors
Anti-reflection tempered strengthen glass
SlotsOffer 4 full-length expansion slots
VGAAD conversion board
3 DVI/ HDMI outputs for 3 screens
Drive bayOffer 2x 5.25", 1x 3.5" drive bay, 1x slim DVD-RW
KB/MS87-key industrial multi-languages Keyboard/ touchpad
Keyboard layout: CH, FR, GR, JP, KR, RU, UK, US
Power SupplyPS2, 650W, 100~240VAC, Auto switch
SpeakerBuilt-in amplified 2x 2W speaker
Dimension438.8Wx 300Hx 258.6D mm
Weight15 kgs
Carrying CasePadded carrying case with wheels

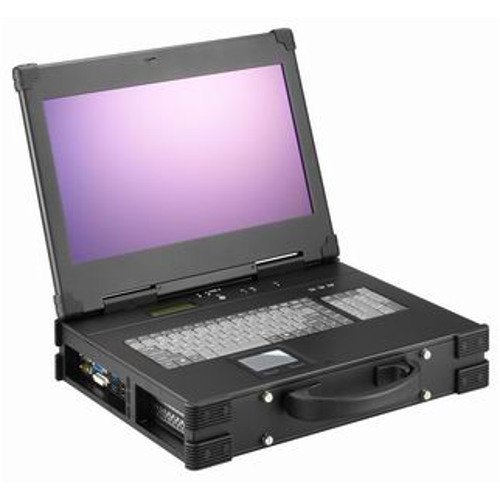

Rugged Laptop

Rugged Laptop

Specifications:


CPUIntel Core i5-2510E, 3M Cache, 2.50GHz Processors
(Option: Intel Core i7-2710QE, 6M Cache, 2.10 GHz)
ChipsetIntel QM77 Express Chipset
Slot1PCI-E (x16), 1PCI-E (x1) full-length expansion slots
Option: 2 PCI full-length expansion slots
Display17.3" TFT LCD Monitor, 1920x 1080, 300 nits brightness, 262K colors,
Anti-reflection tempered strengthen glass
VGALVDS, 3rd Generation Intel Core i7 / i5 / i3 QC/DC mobile processor integrated Gfx
Memory2x 4GB DDR3
HDD1x 500GB 2.5", 7200 rpm SATA HDD, support 1x 2.5" removable SATA
CDROM1x Slim DVD-RW
Interfaces2x DB9 for COM1, COM2, DVI-D + DVI-I connector, 2x USB 3.0 connector, 4x USB 2.0 connector
DP connector, 2x Gbit LAN RJ-45, RCA Jack 3x1 for HD audio
LANInte® 82579LM Gigabit LAN PHY
Inte® 82583V Gigabit LAN
AudioIntel® QM77 built-in high definition audio controller with
Realtek ALC892 for 7.1 CH audio

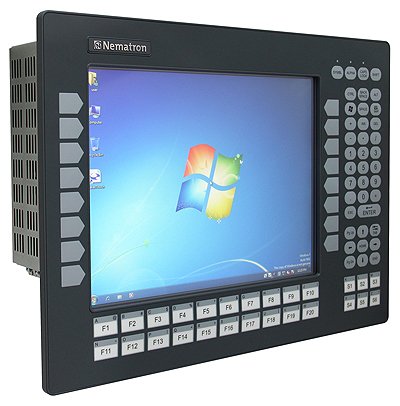

Industrial Computer

Industrial Computer

Features:

1) 15" XGA TFT LCD Panel
2) Support MINI-ITX form factor main board
3) High performance PC up to Pentium 4
4) Expansion slot 2 x PCI
5) Space for 2.5" HDD x 1
6) Space for slim optical driver x 1
7) AC 115-240V wide range power input
8) NEMA4 / IP 65 compliant front panel
9) Panel mounting with clip
10) Meet standard VESA hole ( 75x75 and 100x100 mm ), support desk top stand / wall mount / swing arm mounting

Optional:

Wireless LAN
Touch Screen
150W ATX power supply
Open frame structure

Specifications:


Mainboard

Space for standard MINI-ITX main board

Processors

Intel / AMD / VIA

Memory

Upgradable standard SDRAM / DDR /DDR2 memory

HDD

Space for 2.5" x 1

Optical Device

Space for Slim CDROM/DVDROM/Combo(DVD+CDRW)DVD±RW

Display

Display Type : 15" XGA TFT LCD
Resolution : 1024 x 768
Max.color : 16.2M
Luminance : 250 cd/m2
View Angel : 150°(H) , 135°(V)
Pixel Pitch : 0.297 x 0.297 mm
Contrast Ratio : 700 : 1
Response Time : 8 ms
Power Consumption : 11.27 W
LCD MTBF : 50,000hrs

Expansion Slots

2 x PCI slot

System Fan

2 x ( 60x60x10mm ) cooling fan

Speaker

Built-in 2x stereo speakers(2w)

OSD

Brightness, Contrast, H/V Position, Color, Phase, Clock, Management

Wireless LAN ( optional )

usb Interface,Support 64 and 128 bit WEP Encryption
*802.11b:11Mbps Up to 180m(Outdoor), 35- 60 m(Indoor)
*802.11g:54Mbps up to 50m(Outdoor),20m(Indoor)

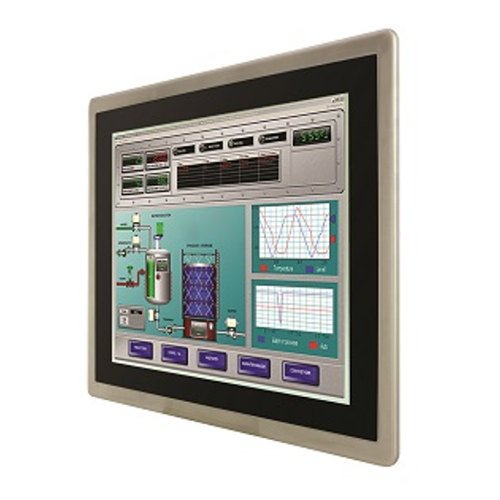

Hazardous Area Computer

Hazardous Area Computer

Other Details:

1) Human machine interface (HMI) with multi-touch technology/gesture experience
2) UL Listed to Safety Standards: ANSI/ISA 12.12.01, 2012, Nonincendive Panel PC for Use in Class 1, Division 2 Groups A, B, C, D Hazardous (Classified) Locations and CAN/CSA C22.2 No. 213-M1987 for Use in Class 1, Division 2 Hazardous Locations: UL File # E365958
3) UL Listed to Safety Standards: UL 60950-1 and CSA C22.2 No. 60950-1-07: UL File # E320439
4) CE Ex Marked to Safety Standards: Explosive Atmospheres (ATEX)-Directive 94/9/EC-Complying with the Essential Health and Safety Requirements that relate to the design of Zone 2 Category 3 Panel PC, certified to ATEX Protection Classes- “CE Ex mark” II 3 G Ex nA ic IIA T4
5) Compliance with the Essential Health and Safety Requirements has been assured by Compliance with IEC 60079-0, IEC 60079-11, and IEC 60079-15

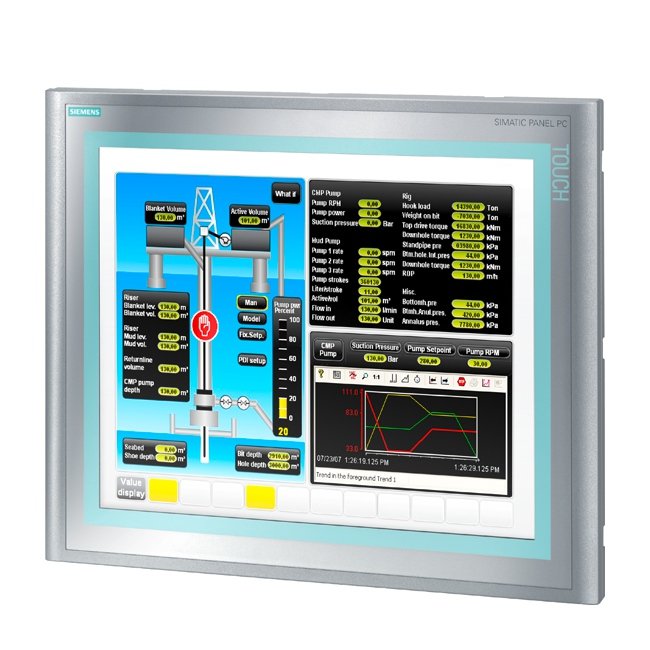

Hazardous Area Panel PC

Hazardous Area Panel PC

Other Details:   Industrial PC manufacturer, Fanless Computer, Single Board Computer, Touch Screen, Industrial Computer Peripherals manufacturer and Suppliers Chennai, Bangalore, Hyderabad, Cochin, India

1) Independently Tested and Certified for Class 1 Division 2 Applications
2) 19" Bright Active Matrix TFT Display, 300 nits (cd/m²)
3) Computer Reliability - 100,000 plus MTBF Ideal for sustained performance and long duty cycles.
4) Shock Mounted Motherboard
5) Powered by Intel Atom D2550 1.86GHz Processor
6) 2 GB Memory (up to 4 GB max)
7) 100mm VESA Pattern Mounting
8) 500 GB SATA Fast Access Disk Drive Standard (Up to 4 TB Available with dual hard drive option)
9) NEMA 4X (IP66) Enclosure, Stainless Steel 316
10) Sealed Connections for USB, Serial, Ethernet and Power
11) 120-240 VAC 1.5A 50/60 Hz Power


Panel Computer

Panel Computer

Features:

Fanless
1) Intel® Atom™ N270 1.6GHz processor, FSB 533 MHz
2) 10.4” High brightness TFT-LCD with resolution of 800x600
3) Sealed resistive touch screen
4) One 200-pin SO-DIMM socket, up to 2GB DDR2 533 MHz SDRAM
5) DC 11~32V wide-range power input

Specifications:

1) Processor- Intel® Atom™ N270 1.6 GHz built-in, FSB 533 MHz
2) System Memory- 1 x 200-pin SO-DIMM socket, support 533 MHz up to 2GB DDR2 SDRAM
3) System Chipset- Intel® 945GSE ICH7M
4) External I/O Port- 4 x USB ports
5) 2 x RJ-45 ports (GbE)
6) 2 x DB-9 (COM1/3, RS-232)
7) 1 x DB-9 (COM2, RS-232/422/485, default RS-232)
8) 1 x VGA port
9) 1 x Audio, Line-out
10) 1 x DC power input
11) Storage- 1 x 2.5” SATA HDD, 1 x external CF slot
12) Expansion Slots- None
13) OS Support- Windows® CE 5.0, XP Pro, XP Embedded, Windows® 7
14) LCD Display Type- 10.4” TFT-LCD
15) Max. Resolution- 800x600
16) Max. Color- 262K
17) View Angle- H:130° / V:110°

Additional Information:
Minimum Order Quantity:
1 Piece(s)

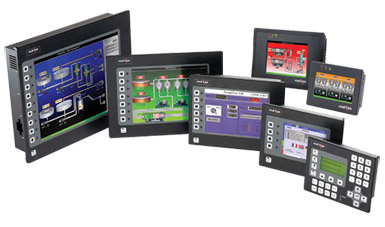

HMI Panel

We are engaged in the supply of HMI Panel, that are available with various displays. With full-featured GUI programming tool of HMI Panel, this system is easily configurable by users. Known for reliability, these are available with us at highly competitive prices. Industrial PC manufacturer, Fanless Computer, Single Board Computer, Touch Screen, Industrial Computer Peripherals manufacturer and Suppliers Chennai, Bangalore, Hyderabad, Cochin, India

Features:

1) Multi-lingual display up to 4 languages and easy switching10 / 100 BASE-T ethernet interface
2) Tag function of the HMI S / W i. e. easy to change the address of the graphic objects
3) Support diverse file types including BMP, JPG, GIF and WMF
4) Read function of a controller's state information
5) Various vector symbols and high quality raster symbols
6) USB host for the use of peripheral devices like mouse, keyboard and printer
7) Strengthened data management
8) Convenient and easy screen editing
9) Simple movie clip effects with GIF animation
10) Sufficient memory space for screen saving (10MB)Vivid distinction with 65,536 colors
11) Offline program simulation

Additional Information:
Minimum Order Quantity:
1 Unit(s)


Industrial LED Display

Industrial LED Display

Compact 19” Industrial Display monitor with 8.5U height19” SXGA TFT LCD Panel support 1280×1024 pixels6mm Aluminum front bezel with Hardness Glass protect screen (Touch option)Rugged construction and modularized design Input signal : VGA + DVI + AUDIO 300 cd/m2 brightness OSD control keys to optimize the displayAC 100-240V wide range external ac adapter

Additional Information:
Minimum Order Quantity:
1 Unit(s)
